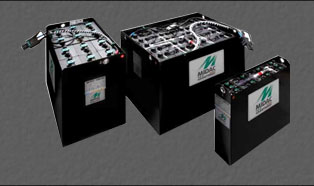

TRACTION BATTERIES
|
State-of-the-art production technology, the MOTIVE POVER RAGE includes
The complete DIN and British Standard series, according to EN60254-1/2 and EN50272-3
The MDL(PzS) series includes 90 cell types, covering a range of capacities from 100 to 1860 Ah/C5.
The MBS(PzB) series includes 54 cells types, covering a range of capacities from 110 to 1050 Ah/C5
MIDAC batteries are assembled on fully plastic-insulated steel trays and available with all
The accessory solutions, like RC (Centralized Filling Systems), Air-Tech (Air Insufflation System),
M-SMART (monitoring devices) and M-ELS (electrolyte level sensors).
Through the continuos-improvement program, besides more than 250 checks during the
Production process, MIDAC ensures consistent quality and service.
|
 |

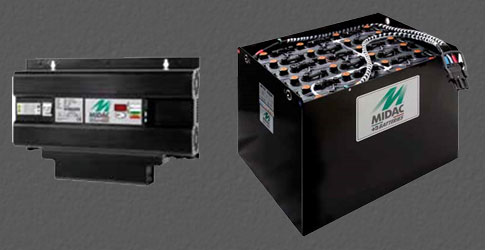

Up to 120 cycles topping-up intervals, the energy-pack MF120 includes the best
Technical solutions providing highly reduced need of maintenance, improving
The general performance of the battery and reducing the energy consumption,
Even conserving the main characteristics and the possibility of deep discharges.
The standard configuration of MF120 includes:
-Special plugs with increased condensing surface
-Air-Tech system(air mixing)
-Electrolyte level sensors M-ELS
- MIDATRON HF charger
|
 |
 |

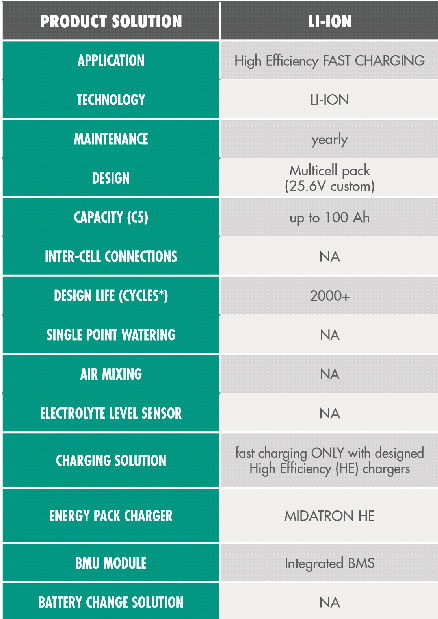

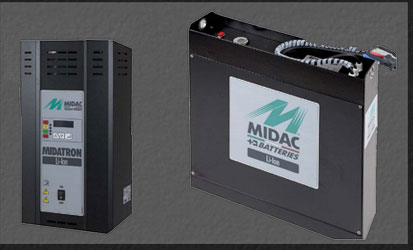

The mindful approach to new technologies, once again
Demonstrate the DNA-insight attitude of MIDAC to follow
The path of continuous development. Li-ion combines the
State-of the-art in battery technology and electronic
Integration, where all the functions are closely monitored
And controlled by the BMS(Battery Management System).
Suitable for fast charging application, it ensures 2000+
Cycles at 80% DoD with maintenance-free operation and
can definitely be defined as option for special as option for special application
where LA does not satisfy the requirements.
|

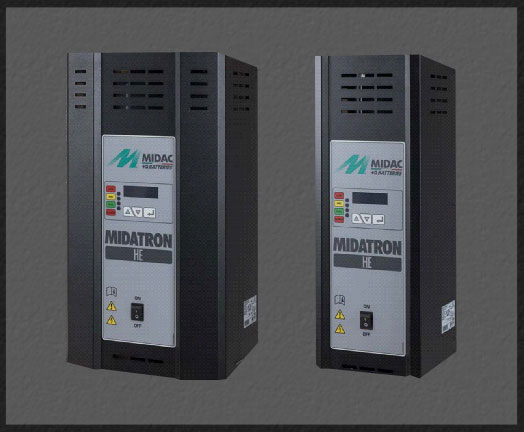

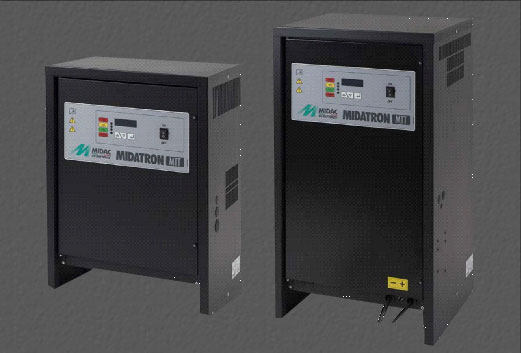

Forefront of charging solutions, MIDATRON HE
And MIDATRON MTT actually represents the TOP
Range from any point of view. Respectively full
100kHz High Frequency switching and 12
Pulse rectification technology, with amazing
EFFICIENCY characteristics, ALL the most
Advanced features are included, starting from
The user-friendly interface to the powerline
Communication with the BMU (MB2).
 |

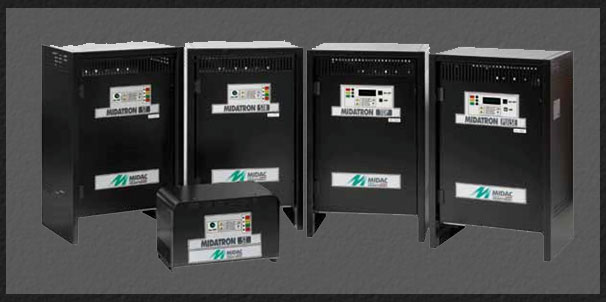

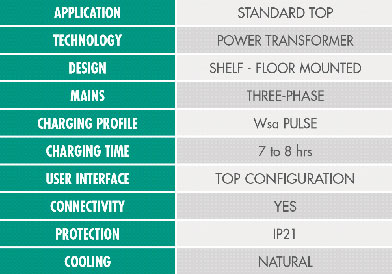

Traditional charger with exclusive MIDAC design,
MIDATRON represents the evolution of 50Hz chargers,
With exceptional characteristics of reliability.
Available in single and three-phase versions, provides total
Coverage of charging capacities from 100 to 1800Ah/C5,
With voltages between 12 and 96V. The four new versions
ST,STR,TOP and PULSE, can satisfy every application
Requirement, from simple to the highly advanced, providing
maximum efficiency and reduced charging time, besides
many configuration possibilities, record of last 1000 charging
cycles and download of acquired data through the USB door.
|
 |

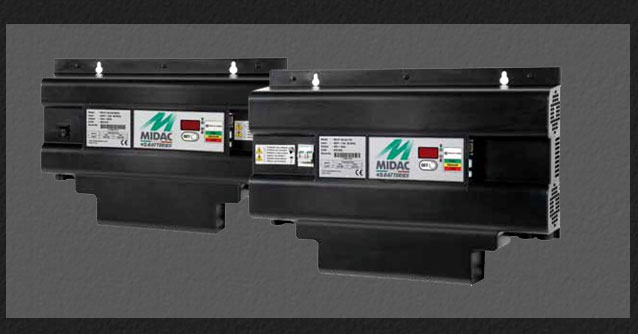

Integrally engineered by MIDAC,MIDATRON HF is the ultimate evolution of the
charger family
Developed with HF technology, includes the lastest innovations of control, protection and
Safety, providing the ideal instrument for the maximum charging efficiency, protecting and
Improving the battery life.
All the models 3kW (single-phase) and till 9kW(three-phase) are fitted with CAN-BUS
System which allows maximum flexibility on configuration, the record of 250 charging
Cycles, MASTER-SLAVES connections, remote control and signaling, further to the fitting
With thermal sensor to allow the automatic setting of charging parameters.
Available in Air-Tech version(with air mixing pump), all the models can be configured for
Max 12Hrs or max 8Hrs charging time, based on the battery capacity. |
 |
 |

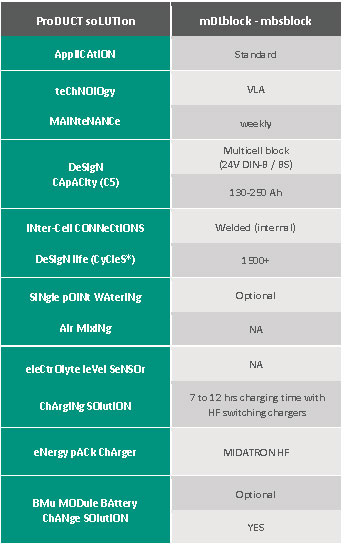

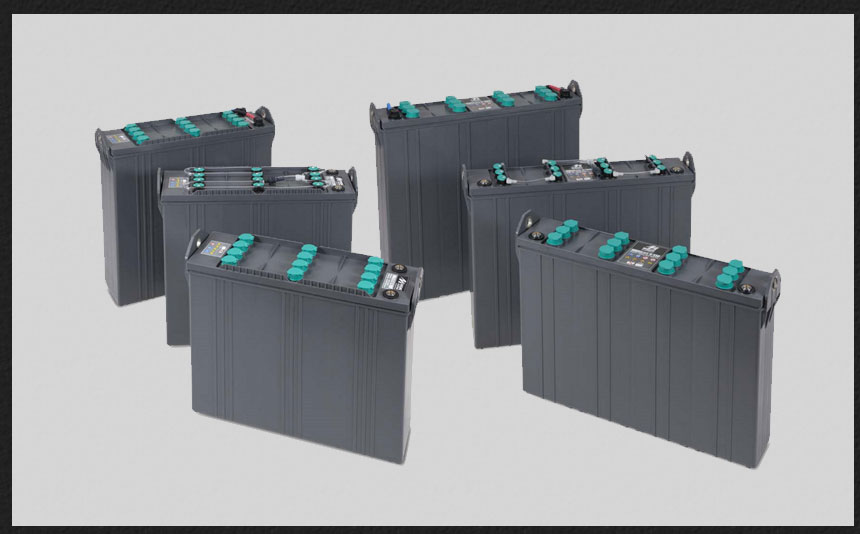

One of the greatest challenges in technological development
Is to create innovation, whilst introducing substantial
Improvements to both the production process and the
Application. The “block project”, 8 years on from the launch
Of the revolutionary MBSblock range, is now completed
And significantly enchanced by the introduction of the new
MDLblock versions to cover most of the applications on
Pallet trucks designed for British Standard and DIN-B 24V
Batteries up to 250 Ah/C5

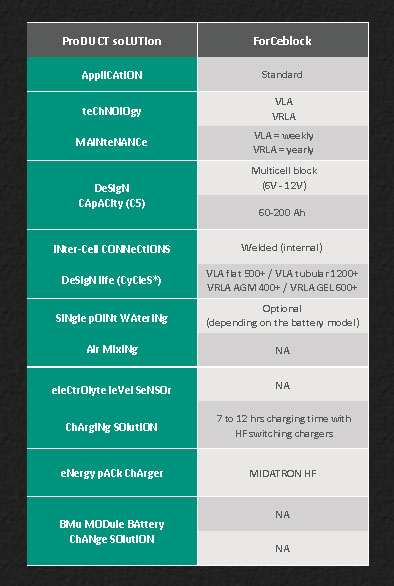

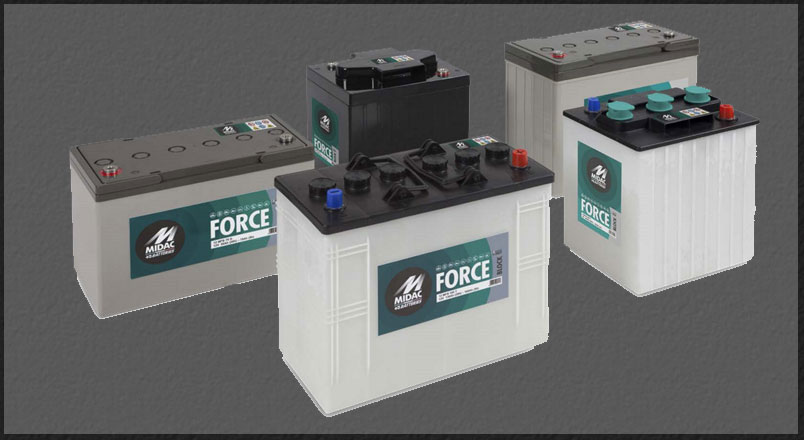

Following the long and successful experience of EW (Energy
At Work) batteries, the new FORCEblock range has been
Designed to be a complete and reliable solution for ALL
Those LIGHT MOTIVE POWER applicatiosn such as EV,
Cleaning machines, small pallet trucks, aerial platform and
Lifts, as well as wheelchairs and golf cars.
Now available in vented and sealed version, both flat and
Tubular plates models can be defined to properly satisfy the
Specific application.
|
